MANTIS UL 10kW INV. 20kWH AC110/220V 48
  • MANTIS UL 10kW INV. 20kWH AC110/220V 48
  • MANTIS UL 10kW INV. 20kWH AC110/220V 48
  • MANTIS UL 10kW INV. 20kWH AC110/220V 48
  • MANTIS UL 10kW INV. 20kWH AC110/220V 48
  • MANTIS UL 10kW INV. 20kWH AC110/220V 48
  • MANTIS UL 10kW INV. 20kWH AC110/220V 48
  • MANTIS UL 10kW INV. 20kWH AC110/220V 48
MANTIS UL 10kW INV. 20kWH AC110/220V 48
SKU: EVO-MATS-1020-48
$8,795.00 USD $18,999.00 USD

🗐 - Mantis Spec Sheet

🗐 -

Product Description:

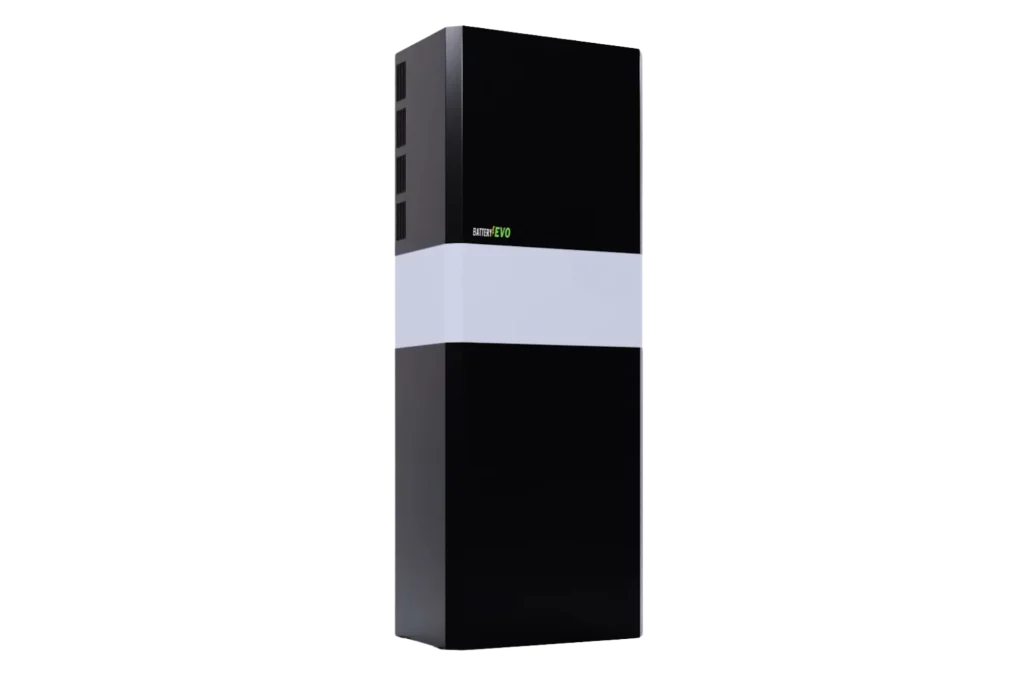

The BatteryEVO MANTIS UL 20kWh All-In-One System delivers high-capacity, reliable power for homes seeking full energy independence. Built with premium LiFePO4 cells, an advanced BMS, and a 10kW inverter, it ensures safe, efficient, and long-lasting performance. Achieve seamless backup, solar integration, and long-term reliability with this off-grid solution.
➤ Advanced BMS with full protections
➤ Built-in 10kW inverter and MPPT charger
➤ Stackable up to 6 units in parallel
➤ 10-year warranty
Warranty Details

BatteryEVO provides a 10-year warranty with lifetime technical support, covering free repair or replacement of defective battery cells and ensuring reliable long-term performance.
Shipping & Returns

BatteryEVO’s Return and Exchange Policy requires customers to provide photos and proper packaging before returns, covers accessories with a 30-day replacement period, applies a 20% restocking fee for non-defective returns, and may involve additional fees for lithium battery shipments due to regulatory requirements.

Related items

Product FAQ's
How long can the Mantis battery power my home or appliances?

With a built-in 20kWh lithium battery, the Mantis system can typically power essential home appliances for 1 to 2 days on a full charge, depending on usage.

For example:
-Whole-home load (with A/C or electric stove): up to 10–12 hours at full capacity draw;
-Work-from-home office (200–400W): up to 40 hours;
-Coffee maker or microwave (1000W+): 15–20 uses.

The actual run time depends on how many devices are running at once and their total power draw. With efficient energy management and solar recharging, many off-grid users report 24/7 autonomy when paired with enough solar input.
How much solar input can the Mantis handle, and how do I connect panels?

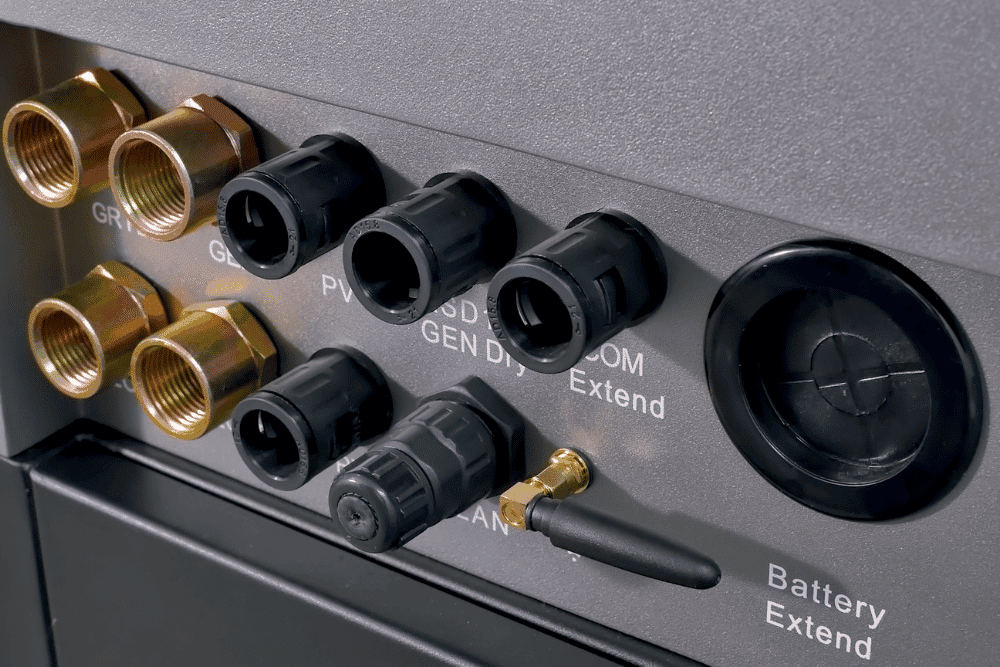

The Mantis features four MPPT input ports, each rated for 120V to 500V DC and up to 14A of current. This allows you to connect up to four separate solar strings, one to each MPPT input, for flexible system design and efficient solar harvesting. The connectors are screw terminals (not MC4), requiring 12AWG solar PV wire per input.
IMPORTANT: Turn off both the MPPT and inverter switches before making any connections.

For example, using our recommended 550W solar panels (Voc 49.9V, Isc 14.0A), you can configure:
-2 panels in series ≈ 99.8V — minimum viable startup voltage (for warm climates);
-10 panels in series ≈ 499V — just under the MPPT max limit (for cooler climates).

For other type of Solar Panels: Do not exceed 500V input or 14A current on any MPPT. Adjust your setup based on location and panel specs.
Can I install the Mantis system myself, or do I need a professional?

The Mantis system is not a plug-and-play unit — it requires direct AC wiring for both grid input and output, including connecting L1, L2, and N lines manually. As shown in the installation guide, you must:
-Use 12 AWG wires for the grid connection.
-Strip 18mm of insulation before inserting the wire into terminals.
-Route wires through the correct GRID ports (L1/L2/N) as labeled.
-Ensure grid voltage is within the supported range before connection.
-Shut off all circuit breakers prior to wiring.

Subpanel is Not required in the Mantis system. The Mantis system comes with built-in AC coupling, which means:
-You can directly wire your electrical loads to the Mantis AC output terminals — no separate subpanel is needed in most setups.
-In larger home installations, a subpanel may still be useful for organizing circuits and improving load management — but it’s optional, not mandatory.

In short: If you're unsure or working with grid-tie/off-grid hybrid scenarios, always consult a professional to ensure code compliance and safe operation.
System VoltageAC110V/220V
Nominal Voltage51.2V
ChemistryLFP
kWh Capacity20kWh
Ah Capacity400Ah
Charging Voltage55.2V - 58V
Max Charge Voltage58V
Operating Voltage Range58V
Suggested Low Voltage Cutoff40V - 48V
Cell Configuration16S4P
Max Continuous Discharge Current210A
Max Continuous Power10000W
Max Discharge Peak Current11000W (3 seconds)
Max Charge Current45A AC
MPPT Charge Controller4*14A DC
Charge Temperature Range0°C (32°F) / 50°C (122°F)
Discharge Temperature Range '-10°C (14°F) / 55°C (131°F)
Optimal Discharge Temperature Range15°C (59°F) / 35°C (95°F)
Storage Temperature Range'-5°C (23°F) / 35°C (95°F) (Max 6 Months)
Weight750 lb
Depth25.6 in
Width15.7 in
Height75.2 in
