Name: 22kVA Walrus G3 Pro 66kWh
Brand: BatteryEVO Company
SKU: K0353
Price: 12295.00 USD
Availability: OutOfStock

1/3

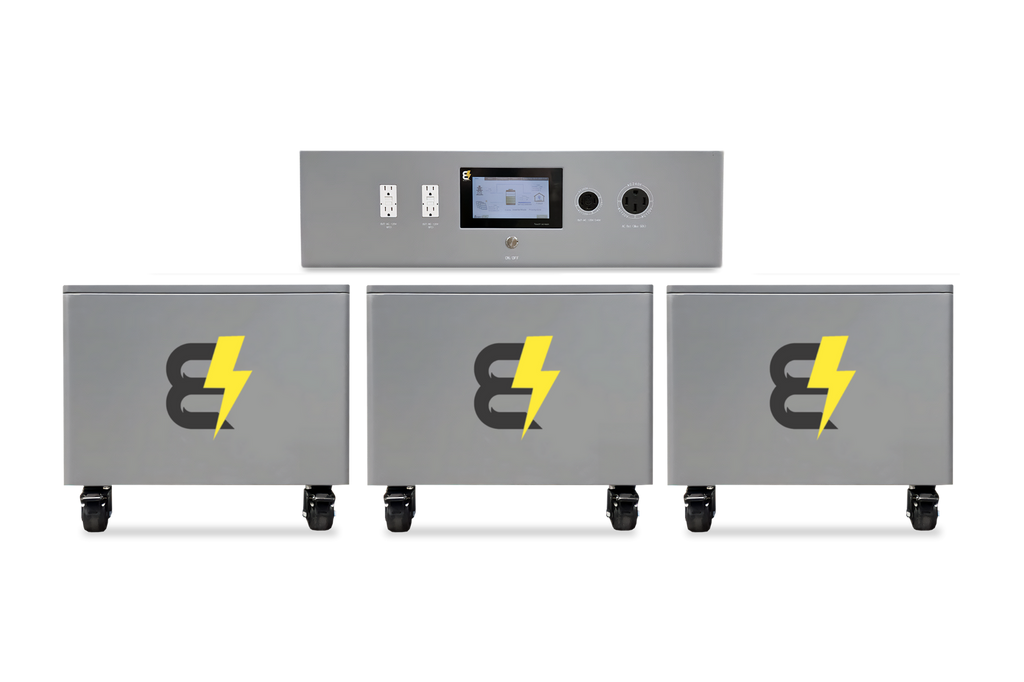

22kVA Walrus G3 Pro 66kWh

SKU: K0353

$12,295.00 USD

📄 Download Spec Sheet

📘 Download User Manual

Product Description:

The BatteryEVO 66kWh WALRUS G3 Pro All-in-One System integrates a 22kVA inverter and 11kW solar charger for seamless home or business energy management. Built for off-grid applications, it ensures high-capacity, reliable power. Real-time monitoring and flexible input options make it ideal for optimizing solar and backup setups.
➤ 7" touchscreen display with Wi-Fi monitoring
➤ Built-in easy portability wheels
➤ Programmable charge/discharge scheduling
➤ 10-year warranty batteries

BatteryEVO provides a 10-year warranty with lifetime technical support, covering free repair or replacement of defective battery cells and ensuring reliable long-term performance.

BatteryEVO’s Return and Exchange Policy requires customers to provide photos and proper packaging before returns, covers accessories with a 30-day replacement period, applies a 20% restocking fee for non-defective returns, and may involve additional fees for lithium battery shipments due to regulatory requirements.

Related items

Product FAQ's

Yes — the Walrus G3 Pro is fully off-grid capable.
It’s engineered for independent operation, combining:

-Three 22kWh lithium battery packs (66kWh total),
-A 75A split-phase inverter (22kVA), and
-Dual MPPT solar charge controllers (2 × 5500W)

into a single plug-and-play unit. This design enables seamless performance in cabins, homesteads, off-grid homes, and remote installations — even with no grid access.

The system automatically manages charging from solar and discharging to your loads, offering true energy independence with minimal configuration required.

The Walrus G3 Pro supports up to 11,000W of solar input via two independent MPPT controllers, each capable of handling up to 5,500W (90V–230V, 80A).

Recommended Panel Configurations (with BatteryEVO 550W panels):
We offer a preconfigured 16-panel kit optimized for this system: Total Input: 16 × 550W = 8,800W

Connection Method:
→ Split into 2 groups of 8 panels
→ Each group wired as 2 panels in series × 4 parallel strings (2S4P)
→ One group per MPPT input port

This setup keeps each MPPT controller well within voltage and current limits while maximizing solar harvest.

📌 MPPT Specs Recap:
-Input Voltage: 90V–230V
-Max Current: 80A per MPPT
-Number of MPPT Inputs: 2 (independent)

Example Panel Specs:
→ Voc: 49.9V
→ Isc: 14.0A

Note: Always ensure panel voltages fall within MPPT input range. We recommend using panel kits designed for Walrus to simplify installation.

If you already have an off-grid setup, installing the Walrus G3 Pro is straightforward. The system uses standard interfaces, including:

-SS2-50P twist-lock plug for AC output;
-Direct wire terminals for AC input, supporting up to 75A.

The AC input wiring requires at least 6 AWG cables for safe operation. While experienced users with electrical backgrounds may handle installation on their own, we strongly recommend hiring a licensed electrician if:

-You’re building a new off-grid system from scratch;
-You need to wire into your home’s main panel or subpanel;
-You are unfamiliar with high-current wiring and safety protocols.

Note: The system does not come with pre-installed input cables, so proper wire sizing and terminal setup are critical for safe operation.

System Voltage	AC110V/220V
Nominal Voltage	66 V
Chemistry	NMC
kWh Capacity	44 kWh
Ah Capacity	660 Ah
Charging Voltage	73V - 75V
Max Charge Voltage	75.6 V
Operating Voltage Range	54V - 74.7V
Suggested Low Voltage Cutoff	54V - 60V
Cell Configuration	18S2P
Max Continuous Discharge Current	250A DC x (G3 battery connected to the inverter)
Max Continuous Power	22 kVA
Max Discharge Peak Current	75A AC
Max Charge Current	50A AC
MPPT Charge Controller	5500W * 2
Charge Temperature Range	-20°C (-4°F) / 55°C (131°F)
Discharge Temperature Range	-20°C (-4°F) / 55°C (131°F)
Optimal Discharge Temperature Range	15°C (59°F) / 35°C (95°F)
Storage Temperature Range	-5°C (23°F) / 35°C (95°F) (Max 6 Months)
Weight	440 lb
Depth	15.4 in
Width	24.41 in
Height	36.24 in
